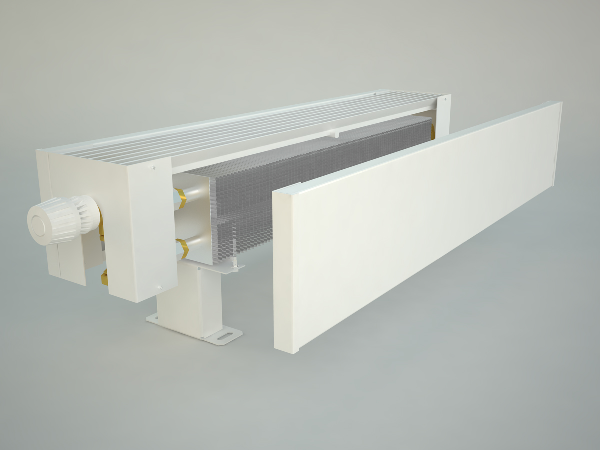

KORALINE LKX / LKE free standing convector

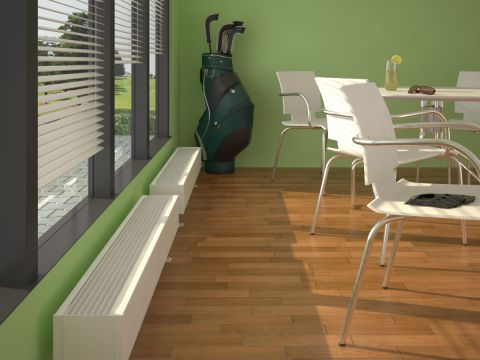

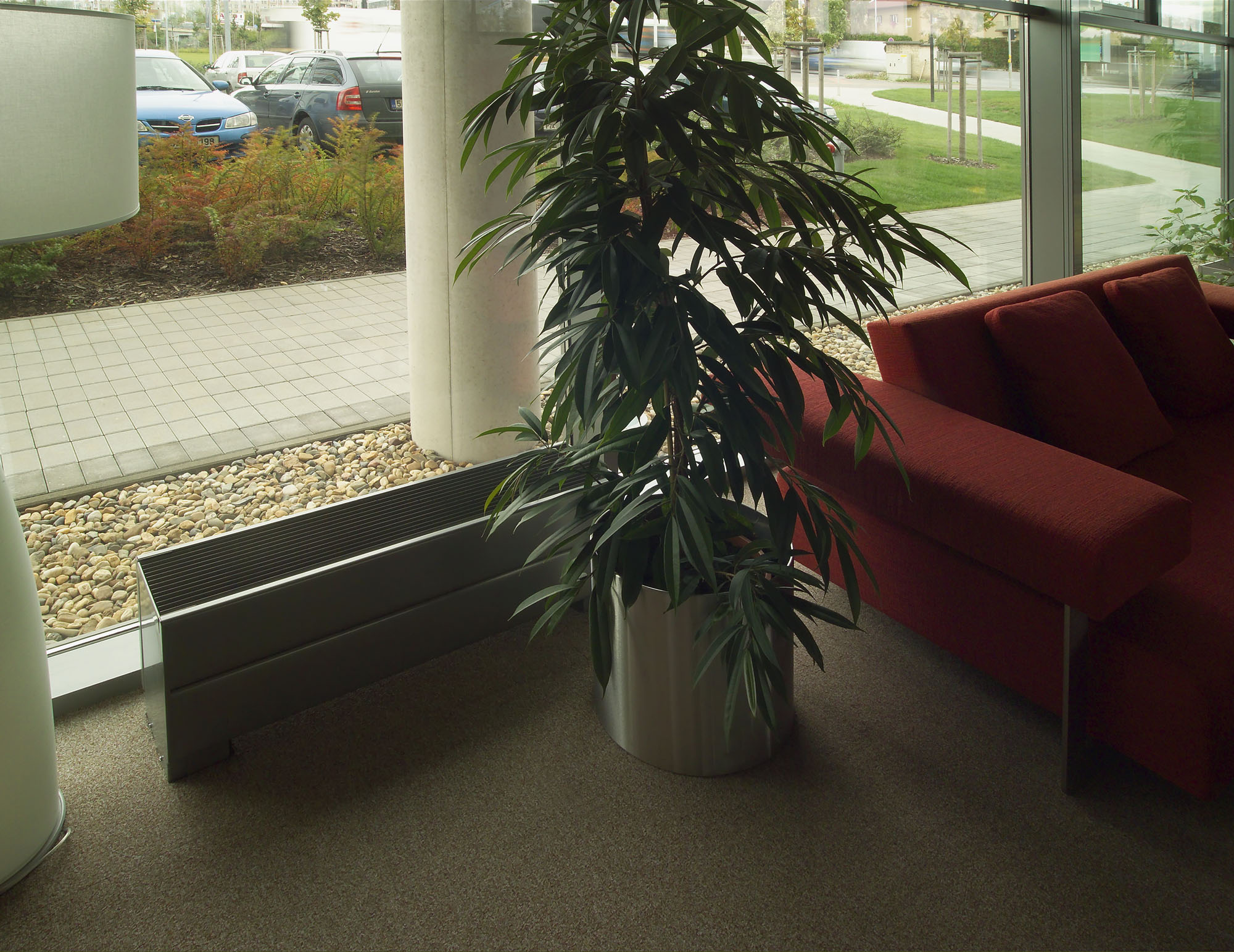

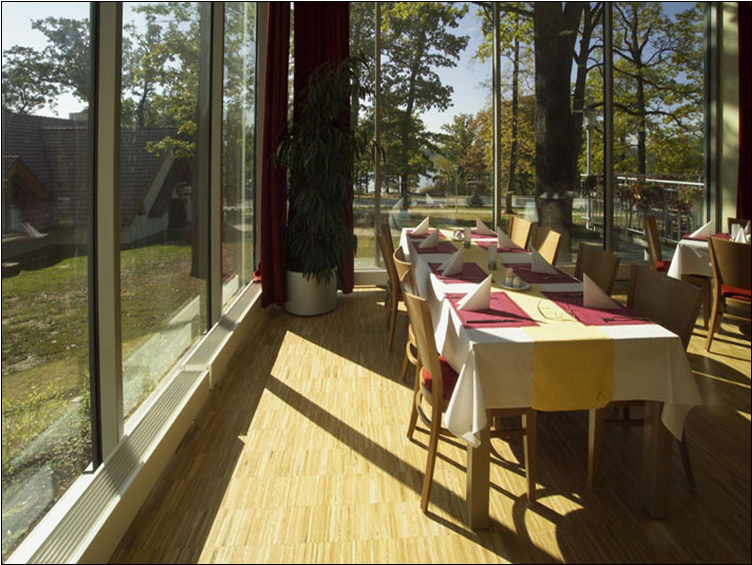

Do you like large glass surfaces or are the interior window sills low and combined with some glass surfaces? Use subtle and graceful shapes of the free standing convector. the design will let the windows stand out and provide a great view from the interior. Outstanding technical parameters
ensure excellent thermal comfort in the room.

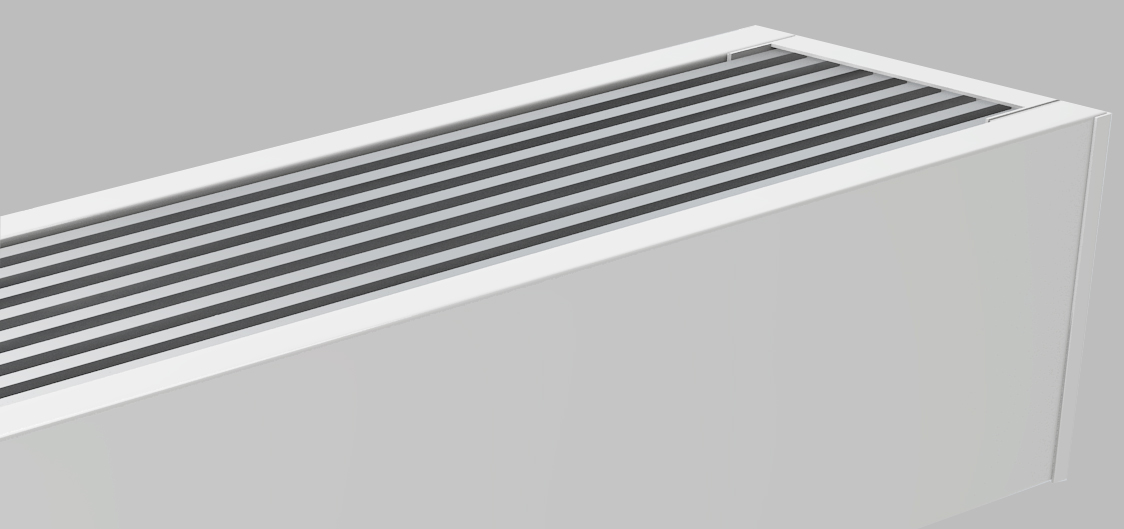

• LKX design of zinc galvanised steel – with aluminium grid (silver eloxal coat)

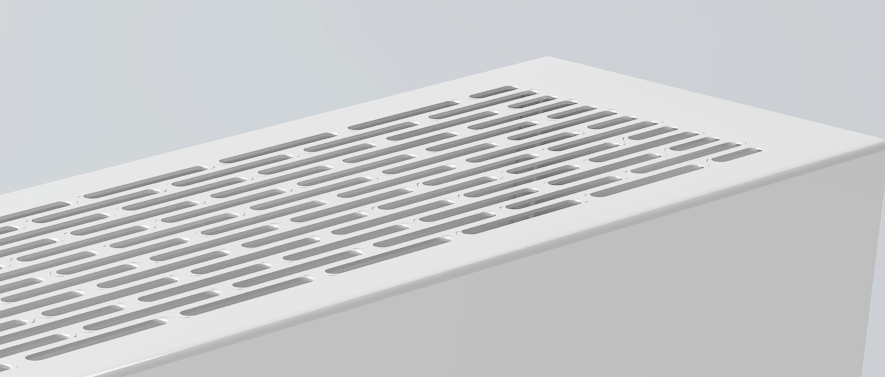

• LKE zinc galvanised steel – design with embossed cover grid - see sketch (not available for pool applications)
Specification
| casing element height (mm) | 90, 150, 230, 300 |
| widths (mm) | 80, 130, 180, 230 |
| lengths (mm) | 600, 700, 800, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2200, 2400, 2600, 2800, 3000 |
| outputs (W) | from 203 to 5670 |
| max.working pressure (MPa) | 1,2 |
| max.working temperature | 110 °C |
| max.surface temperature | 40 °C |
| connecting thread | inner G 1/2“ |
| connection method | recommend botton conection, side |
