Installation

The installation of the thermal elements is very simple and almost no preparation work is necessary.

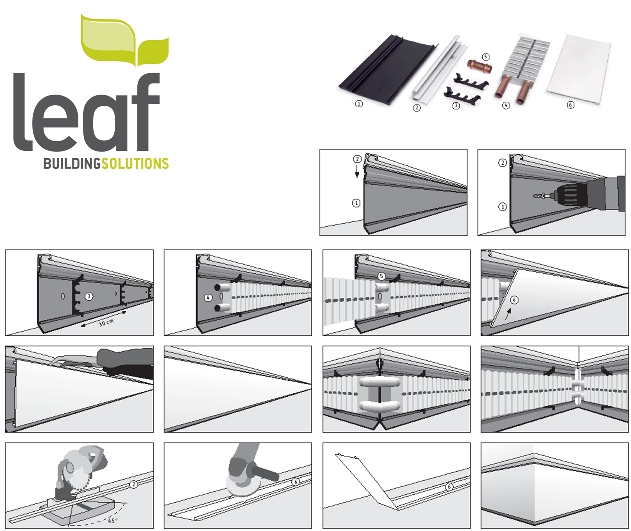

Each part is cut to desired dimensions and angles. The base of PP (polypropylene) and the top profile of aluminum placed one inside the other and screwed to the wall. Then, mounting plastic clips are installed onto the PP base at 30 cm intervals in order to place the heat exchanger.
In the hydraulic version, the connection between the parts of heat exchanger and the provision of hot water may be done by suitable fittings and flexible connectors. In the electric version, the electrical resistances and the cable are placed inside the tubes of heat exchanger and connected. Finally, the front panel of aluminum is placed, after we give the proper form.
